19" Suez Halo-Scheinwerfer (230 VAC / 2000 W)

Marke :
Artikelnummer::
1st12SCS-50PH
Verfügbarkeit:
Nicht auf Lager
Lieferzeit:
5 Wochen
€7.998,00 * Inkl. MwSt. zzgl. Versandkosten
  • Informationen
  • Eigenschaften
  • Bewertungen
  • Product Tags

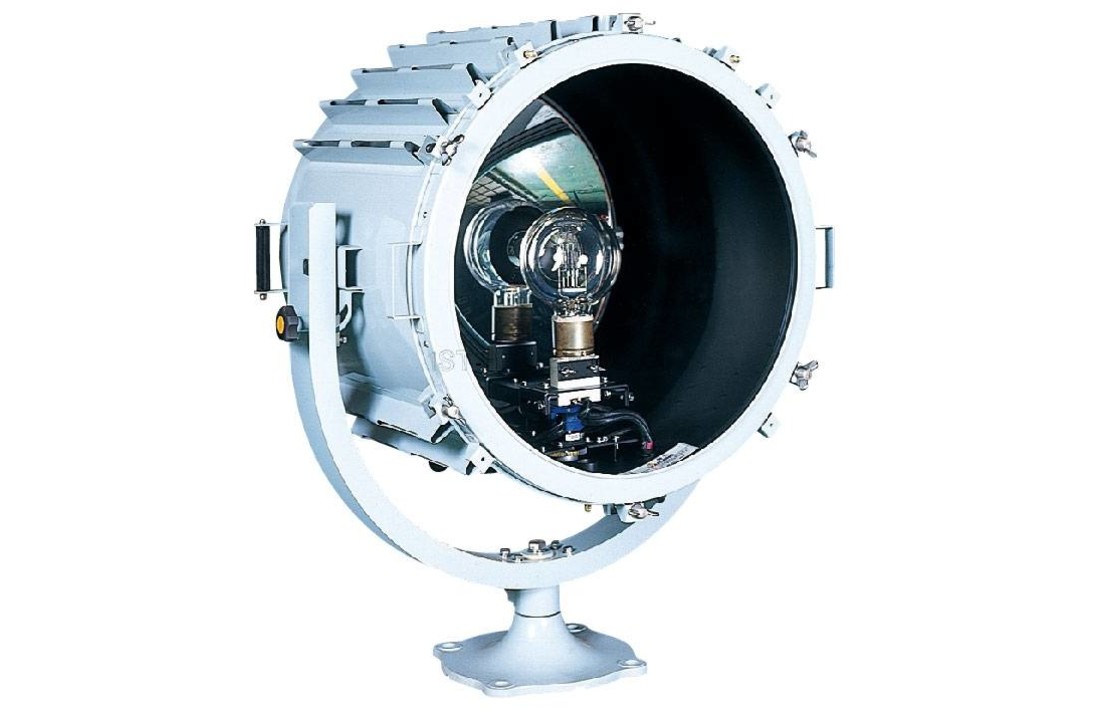

19" Suez Halo-Scheinwerfer (230 VAC / 2000 W)



Description:

This premium Halogen Scheinwerfer is most frequently used for

ships passing the Suez Canal

All materials used are of highest quality to withstand the worst weather conditions ships may face.
  • Material for the Scheinwerfer body is the stainless steel and aluminum alloy for the fitting base and supporting arm.
  • The front glass is made of high quality tempered glass which can resist the severe temperature variation from intensive heating to rapid cooling.
  • The parabolic polished glass reflector (mirror) of high precision is divided into two (2) parts so as to radiate both single beam and split beams.
  • Accordingly, the signal buoys located at the both sides of the canal can be searched easily. The back side of the reflector is reinforced with a special metal plate.
  • The (single) beam can be split vertically into two (2) beams up to 5 degree each on both sides from the zero position i.e. center line.
  • The angle of the dark span between two (2) beams can be adjusted continuously from 0 to 10 degree at the operator's option.
  • The Scheinwerfer body is so air-tight as to bear against pressure test of 0.025Mpa , and can be equipped with a flexible rubber hose to exhaust heated air.
  • ln the lamp holder a spare lamp is also provided against accidents, therefore, in case of emergency lightening can be easily switched over by the outside Iever operation.
  • All materials used for the Scheinwerfer are of so high quality as to stand against the warst weather conditions the ship may encounter during her navigation.
  • Available to provide NK (Nippon Kaiji Kyokai) certificate as standard and also ABS, LR, BV, DNV, CCS and others as option if the users so demand.
  • Optional Accessories:
    • Protector for front glass
    • Sling
    • Socket-outlet
Gehäuse: body stainless steel, fitting base and supporting arm aluminum alloy
IP-Schutzklasse: 56
Lampe: Halogen
Leistung [W]: 2000
Eingangsspannung [VDC]: 24
Eingangsspannung [VAC]: 230
Max. Stromstärke [A]: 8,7
Länge [cm]: 62,8
Breite [cm]: 79
Höhe [cm]: 97,1
Gewicht [kg]: 42
Sichtwinkel [°]: 5
Neigungswinkel Oben [°]: 30
Neigungswinkel Unten [°]: 30
Neigungsgeschwindigkeit [°/s]:
Rotation [°]: 360
Drehgeschwindigkeit [°/s]:
Reichw. [NM]: 1,72
Lumen [lm]: 17.940,60
Candela [cd]: 3.000.000,00
Steradiant [sr]: 0,0059802
Lichtstärke [lx] @ 400 m: 18,75
Lichtstärke [lx] @ 800 m: 4,69
