Equator MSR36240 compact ultra-thin LED underwater light (surface mount with cable port at rear side)

Please select from the above options:

housing material
  • Aluminium bronze
  • Stainless Steel
Colour of LED's
  • white
  • blue
  • green
  • RGB multi-colour (M)
Isolation Layer
  • No
  • Yes





Product Description:

The Equator MSR36240 is a new and world’s first compact ultra-thin LED underwater light with built-in driver. The main feature is that it can be installed on the stern and both sides of the hull under waterline. The thickness is only 9 mm and to install the Equator MSR36240 the max. diameter of the hole through the hull is 8 mm.The light is already patented and design is registered at the Office of Harmonization for the Internal Market (OHIM). The newest multi-color version of Equator MSR36240 allows changing the color of lighting manually or automatically through the complete rainbow spectrum. The most advanced electronic design with built-in microprocessor enables network connection and simple control of complete group of lights with dimming.

Construction:

  • Innovative and Patented Design
  • Aluminium Bronze (AB2) or Stainless Steel Casing
  • 36 Power LEDs Design with White, Blue, Green or Multi-Color RGB Lighting
  • High Grade Polycarbonate Glass Optical Window
  • Vacuum Metalized Reflector
  • Remote Control
  • Digital Dimming
  • DMX512 Network Control
  • Polarity, Transient and Thermal Protection
  • Wide range power supply with low power consumption; simple installation

Technical Information:

  • Power supply [VDC]: 12 - 24, max. 4,3 A / 12 or 1,9 A / 24
  • Lighting angle: 60°
  • Optical window: High-grade polycarbonate glass
  • Luminous flux [lm]: 3.900
  • White colour temperature [K]: 6.000 - 10.000
  • Casting: Aluminium Bronze (AB2) or Stainless Steel (316L)

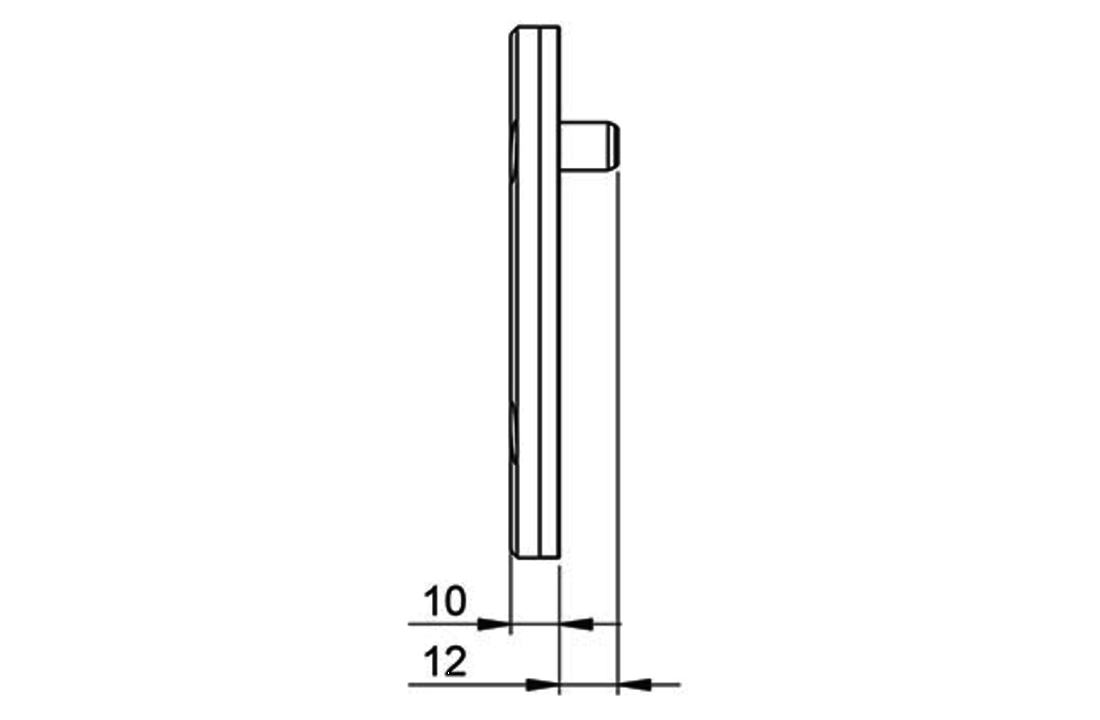

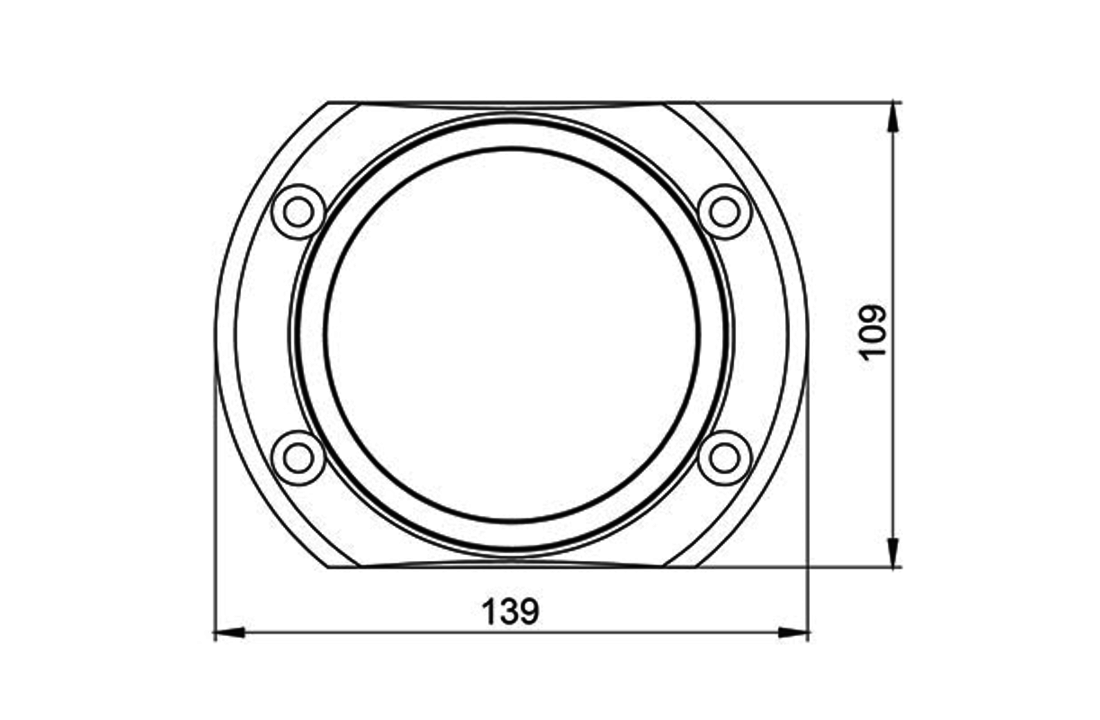

  • Dimensions [mm]: 140 x 105 x 9
  • Weight [kg]: 0,6





Spare Parts and Accessories:

Description Article number Remark
no parts available
