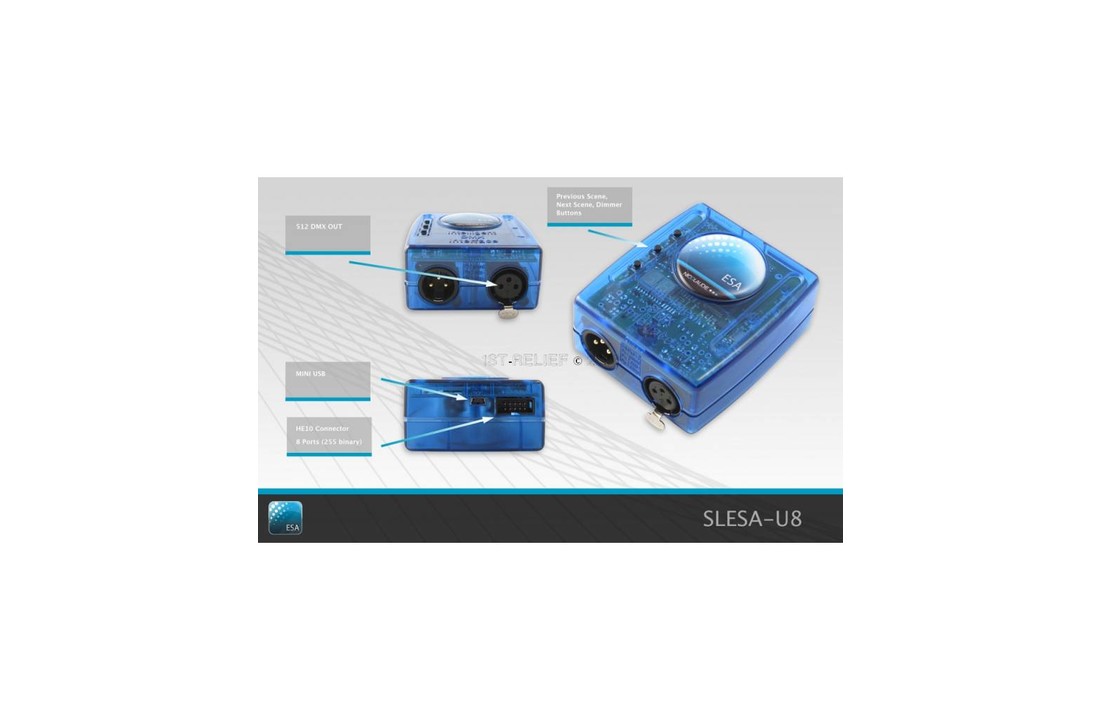

Product Description:

• 512 standalone DMX channels
• 1024 live DMX channels
• port triggering
• time triggering with daylight saving and sunset/sunrise functions
• configurable DMX signal
• replaceable battery

Construction:

• USB connection
• Up to 2 DMX512 universes
• 128k flash memory for storing stand alone programs
• 8 dry contact trigger ports via HE10 connector
• clock & calendar triggering function
• stand alone mode with 1 zone and 255 scenes

Technical Information:

• Package: Interface, cdrom, usb cable
• OS Requirement: Mac OSx 10.6/10.7/10.8 - Windows XP/VISTA/SEVEN/8 32/64 bits and USB 2.0
• Colors: Blue, Orange, Gray, Green, Marine, White, Red
• Connections: XLR3, mini USB, 2 HE10, battery
• Power: Power From 5V to 5.5V DC (AC/DC adapter in option, ref: POWER1_EU)
• Certifications: EC, EMC, ROHS, ETL, UL (some are in progress)
• Dimensions: 79x92x43 mm 120g
• Package: 140x135x50 mm 340g
• Use: Environement IP20 Temperature 0ºC to 50ºC
• Buttons: 2 buttons to change scene (previous/next) + 1 button to change dimmer
