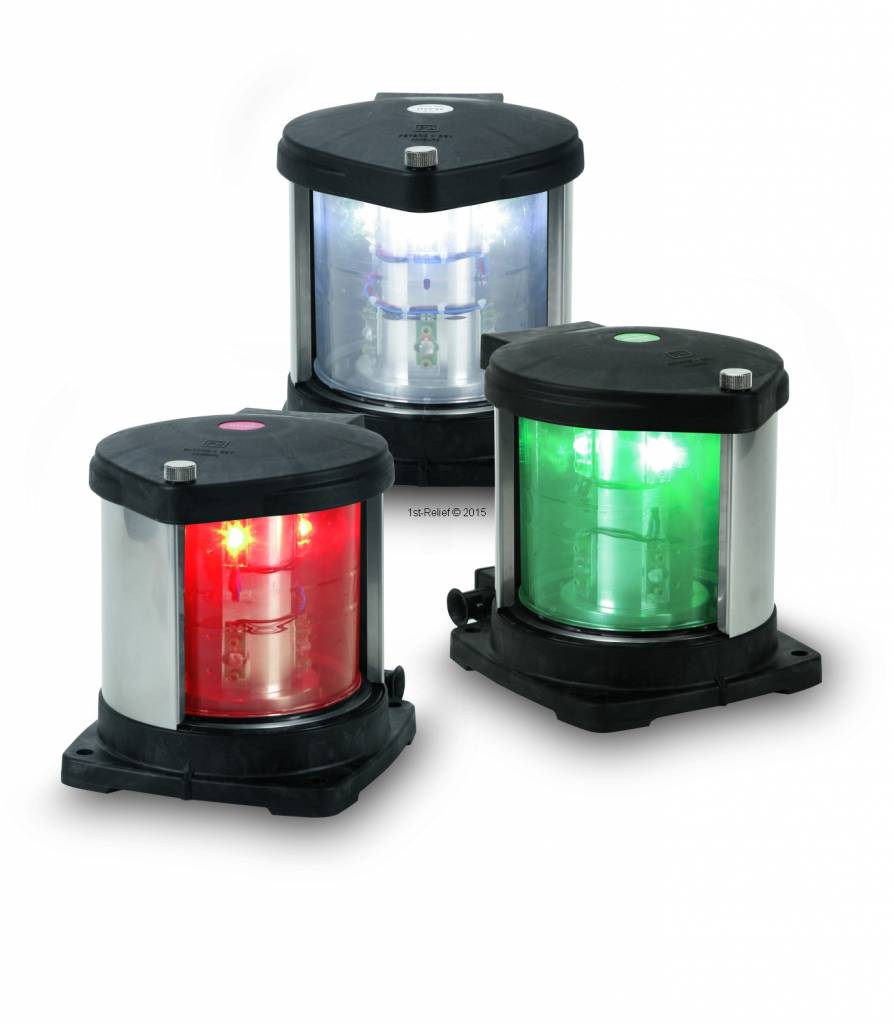

The Navigation Lanterns Type 780 are developed for all vessels more than 20 m and more than 50 m in length according International Regulations for Preventing Collisions at Sea 1972.
Please select the appropriate type of the light / lantern with the above selector:
Please select the input voltage of the lamp (24 VDC to 230 VAC) with the above selection.
| Housing: | Black polyamid, glass fibre reinforced, shock resistant, non corrosive, non magnetic, seawater resistant, with stainless steel screens (1.4571) |
| Connection: | Terminal box on every light |
| Lens: | PMMA |
| Protection Class: | Water protected according to EN 60945 (equivalent to IP 56) |
| Features: |
|
| Compliant to: |
|
| Approvals: |
|
| корпус: | Non corrosive |
| угол обзора [°]: | 135 |
| диапазон [NM]: | 3 |
| Входное напряжение [VDC]: | 24 |
| Входное напряжение [VAC]: | 115 VAC, 120 VAC-US, 230 VAC |
| Электрические [Вт]: | 3 |
| Вес [кг]: | 4,2 |
| защита окружающей среды: | IP 56 |
| Вспышки в минуту: | N/A |
