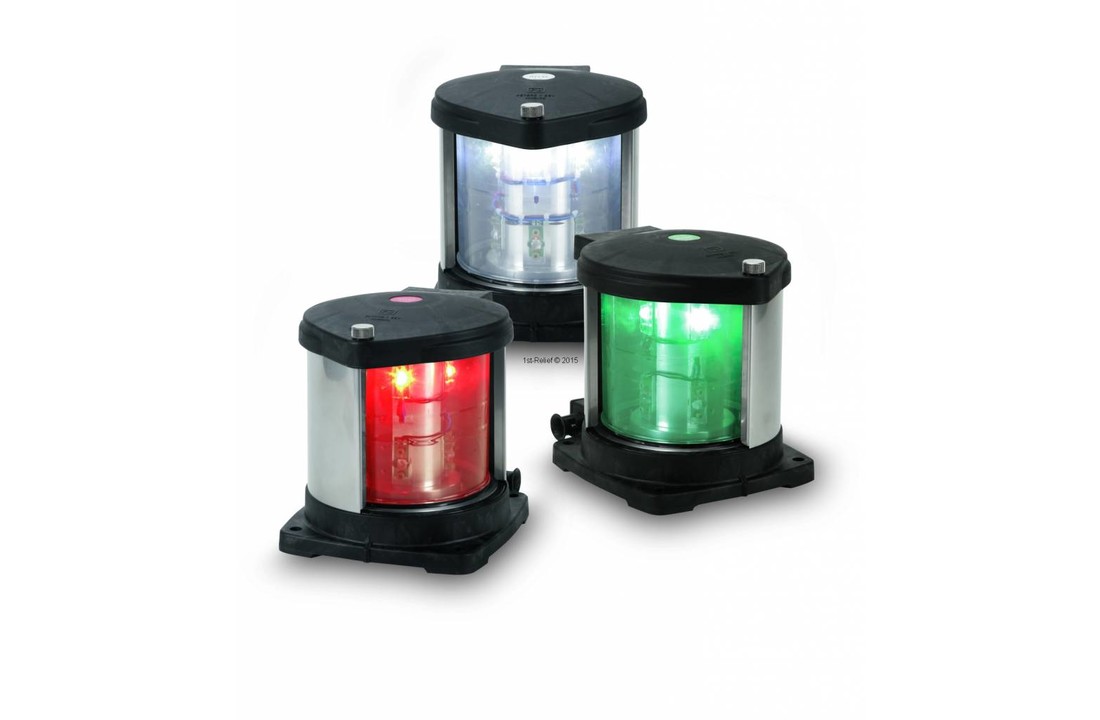

LED Allround Navigatieverlichting / Lantern 780 - Signal green
The Navigation Lanterns Type 780 are developed for all vessels more than 20 m and more than 50 m in length according International Regulations for Preventing Collisions at Sea 1972.
Please select the appropriate type of the light / lantern with the above selector:
- Single Navigatieverlichting / Lanterne
- Double Navigatieverlichting / Lanterne
- Hoistable Navigatieverlichting / Lanterne
Please select the input voltage of the lamp (24 VDC to 230 VAC) with the above selection.
| Housing: |
Black polyamid, glass fibre reinforced, shock resistant, non corrosive, non magnetic, seawater resistant, with stainless steel screens (1.4571) |
| Connection: |
Terminal box on every light |
| Lens: |
PMMA |
| Protection Class: |
Water protected according to EN 60945 (equivalent to IP 56) |
| Features: |
- Certified lifetime 50.000 hours - single lantern
- Certified lifetime 100.000 hours - double lantern
- Maintenance free
- Low power consumption
- Single and double lantern have the same dimensions
- No spare bulbs any more
- Each light of a double lantern is equiped with it’s own terminal box
- Ship’s cable is easy to terminate straight into the light
- Durable materials and great structural strength
|
| Compliant to: |
- Regulation COLREG 72, Annex I/14
- IMO Resolution A.694(17)
- IMO Resolution MSC.253(83)
- EN 14744, 2005
- IEC 60945 Ed.4.0, 2002
|
| Approvals: |
- BSH (Bundesamt für Seeschifffahrt und Hydrographie
- GL (Germanischer Lloyd)
- UL1104 (USCG)
- MED
|
