    Equator MSR36240 compact ultra-thin LED underwater light

    €929,-* 0 pcs on stock; delivery within 2 weeks
    Equator MSR36240 compact ultra-thin LED underwater light (surface mount with cable connection on the back)... Show more
    20 variations housing material: Aluminium bronze, Colour of LED's: white, Isolation Layer: No

    Product description

    The EQUATOR MSR36240 series of a compact ultra-thin underwater light with built-in driver is designed to use the latest LED lighting technology.
    The surface-mount designed casing enable very simple installation on the stern and both sides of the hull without making any bigger holes through the hull under waterline.
    All the models are available in aluminium bronze or stainless steel casings. The lighting is available in white, blue, green RGB or WGB colors with 36 power LEDs.
    The multi-color RGB or WGB versions allow changing of the color of lighting manually or automatically through the complete rainbow or turqouise spectrum.
    The most advanced electronic design with built-in microprocessor enables network connection and simple control of complete group of lights with dimming.

    Construction

    • Innovative and Patented Design
    • Aluminium Bronze (AB2) or Stainless Steel Casing
    • 36 Power LEDs Design with White, Blue, Green or Multi-Color RGB Lighting
    • High Grade Polycarbonate Glass Optical Window
    • Vacuum Metalized Reflector
    • Remote Control (optional)
    • Digital Dimming (optional)
    • DMX512 Network Control (optional)
    • Polarity, Transient and Thermal Protection



    Technical Information

    NameValue
    Power usage4,3 A at 12 VDC; 1,9 A at 24 VDC
    Lighting angle60°
    Optical windowHigh-grade polycarbonate glass
    Luminous flux [lm]5.700
    White colour temperature [K]6.000 - 10.000
    CastingAluminium Bronze (AB2) or Stainless Steel (316L)

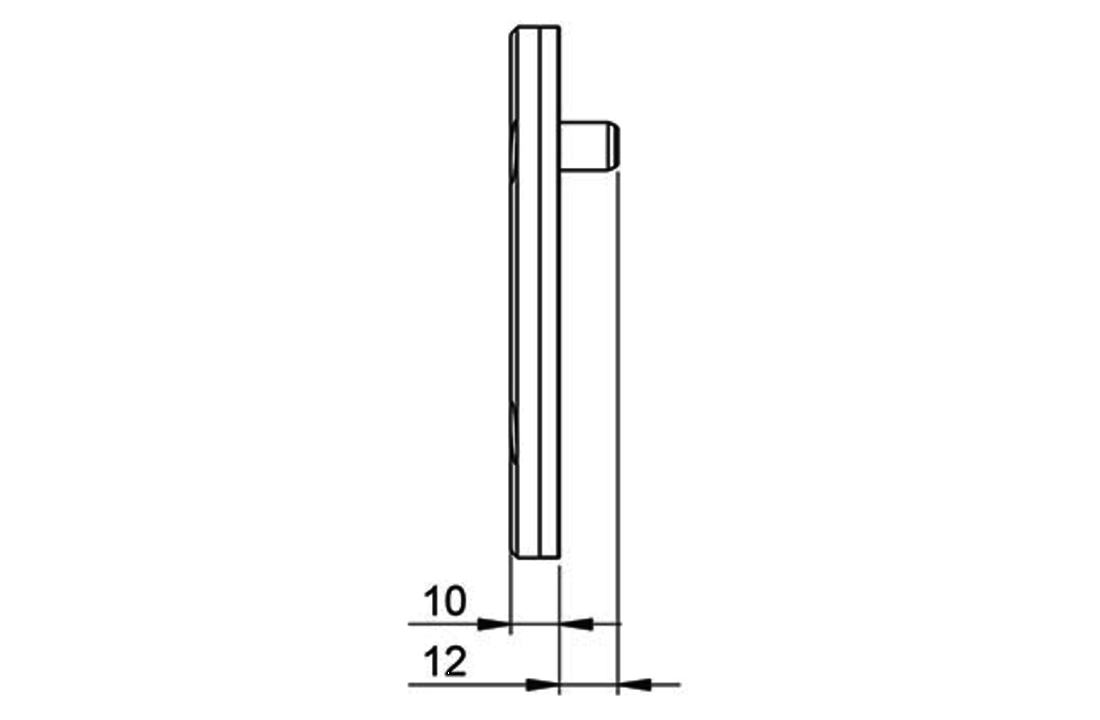

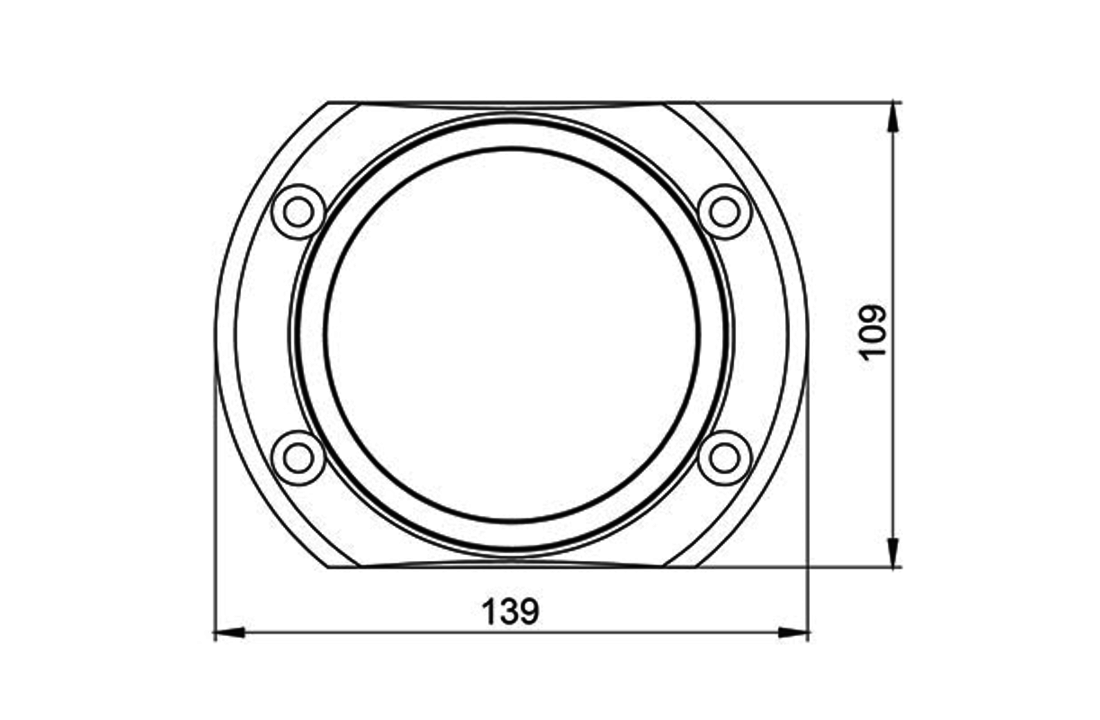

    Dimensions [mm]139 x 109 x 10
    Weight [kg]0,6





    Manufacturer information

    • Manufacturer: Astel
    • Partnumber: Equator-MSR36240-AB2W

    Specifications

    Article number
    1st18Equator-MSR36240-AB2W
