Davit (tilting) for Rigid Inflatable Boats with wheels (3rd generation)

Rigid Inflatable Dinghy tilting Davit (3rd Generation) with wheels allow easy manual loading of lighter weight, rigid bottom dinghies onto swim platforms. Davits are removable by simply removing 4 bolts from our exclusive, super low-profile threaded deck plates (HDPE wrenches included, which are attached to hitch pin lanyards to prevent dropping them in the water!). Davit arms have an automatic self-latching feature, which locks the arms when rotated down (hitch pins should also be installed for securing arms). Limit straps are also included to limit the angle of the arms while loading. The model includes 20 soft rubber wheels to help load watercraft and offers great support and cushioning for most hull shapes. Various winch options are offered separately. Also works great with VersaChock’s exclusive blind fastener system (1st23VCBLINDFSTNR) when access to backside of mounting surface is not possible!

Construction

• 2 removable tilting davit arms made of HDPE and stain-less steel hardware, resist the harsh elements
• 4 low-profile threaded deck plates, bolts, and wrenches included with every kit
• Capacity: 160 kg (350 lbs)
• Universal design fits most hull shapes
• Double wide bunks are made of HDPE
• Self-adjusting to the angle of the hull (deadrise)
• Spacing between bunks can be adjusted with existing holes in davits
• Hull cushioning strips included

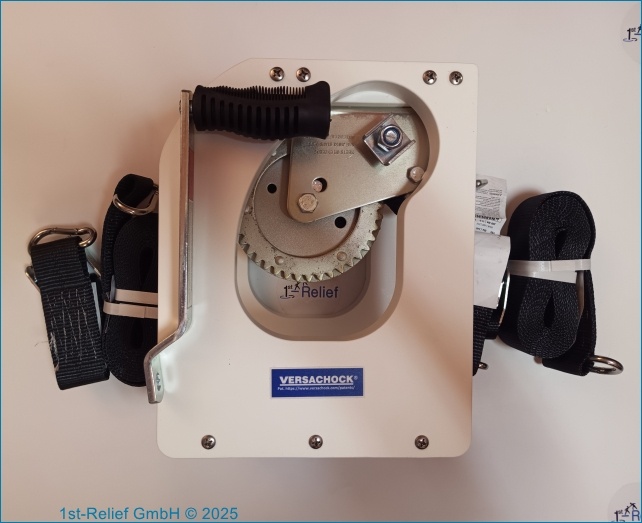

• Optional winch available
• 20 soft rubber wheels included (assist for loading, as well as cradle rigid hull shapes).
• Twelve #10 (3/16”) screws required for installation (not included).
• Lashing straps and eyelets available as accessories (1st23VCTIEDOWNKIT3)
• Requires 12 #10 pan head screws to attach to deck (not included)
• Excluding mounting hardware

Manual

Manufacturer information

• Manufacturer: VersaChock
• Partnumber: 1st23VCTILTG3WHL
