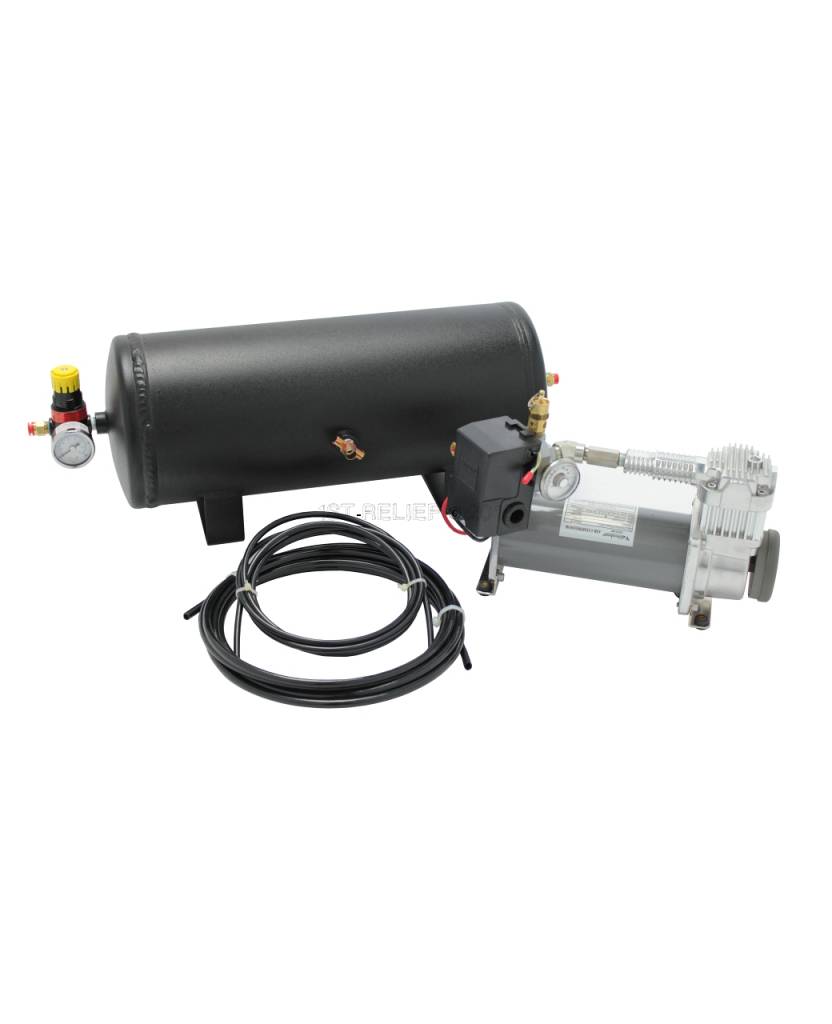

    Compressor / Tank Kit, P449-25, 24 VDC Continuous Duty Operation for S-330 and D-330

    Product description

    The Kahlenberg Horn Air Compressor Model P449-25 Systems are quiet, oil-less compressor solutions incorporating a compact, continuous duty compressor pump, pressure switch, air gauge, and all tubing and fittings specifically arranged for marine use. The P449-25 Compressor System provides output sufficient for Kahlenberg Air Horn Models S-0A, D-0A, T-0A, S-330, and D-330.

    Construction

    • Quiet Operation: 69dB(A) @ 1 meter
    • Oil-less, Continuous Duty Operation: (minimizes maintenance by eliminating oil in air lines)
    • Regulated Output: Included air regulator allows for controlled air consumption without reducing volume of air available in the system
    • Easy Installation: Fittings, air tank, and tubing are supplied, as are safety valve and air gauge
    • All fittings are instant connect: The only wiring required is connection of the compressor assembly to line voltage

    Technical Information

    • Voltage: 24 VDC
    • Max Current: 14A @24 Volts
    • FAD @ 7 bar: 0,94 CFM, 26,6 l/min
    • Max Pressure: 150 p.s.i., 10,31 bar
    • Weight: 23 lbs., 10,4 kg, Compressor and Tank
    • Noise Level: 69 dB(A)@ 1 meter
    • Thermal Protection: Yes
    • Duty Cycle: 100% Continuous
    • Vibration Isolated: Yes
    • Wire Size: 12 AWG minimum
    • Tank Volume: 0,36 cubic feet; 8,7 Liter
    • Hose Length Compressor to Tank [ft; m]: 8; 2,44
    • Hose Length Tank to Horn [ft; m]: 15; 4,57

    Manufacturer information

    • Manufacturer: Kahlenberg
    • Partnumber: P449-25

    Specifications

    Article number
    1st17CO44925
