Model M-522 Signal Controller, Fog Signal Timer - Copy

Name: Kahlenberg Model M-522 Signal Controller, Fog Signal Timer - Copy
Brand: Kahlenberg
Price: 2356.00 EUR

Brand: Kahlenberg

Show all Ship Horns

Compare

Model M-522 Signal Controller, Fog Signal Timer - Copy

€2.356,-* Goods to order; Europe 14 Days, RoW 17 Days

Unit price: €2.356,00 / Piece

* Incl. tax Excl. Shipping costs

Backorder, new shipment exptected

M-522 sound and light control, bulkhead or flush mount, IP65 enclosure with backlit dimmable membrane switch, 110 – 240 VAC 50/60 Hz, 1 phase, and 24 VDC. Controls horns, bell and gong and morse light when manoeuvring and in restricted visibility... Show more

Product description

The M-522 Sound and Light Control significantly improves safety by producing automatic sound and light signals required by IMO and SOLAS with a simpler, more user friendly control panel. Producing automated restricted visibility codes, manoeuvring codes, general alarm, and abandon ship codes per IMO and SOLAS requirements, the M-522 controls multiple horns, bell and gong, and morse light, and can be configured for use with external alarm systems and sound surveillance systems to suit the needs of almost any arrangement of ship systems.

At-Will and Automatic Control of up to two horns and/or two morse lights
Connects to any additional external push buttons
Generates IMO Navigation Rule 35, Automated Signals for Restricted Visibility (40, 60, 90, and 120 second cycle times)
Generates IMO Navigation Rule 34 Manoeuvring Codes
Produces SOLAS General Emergency Alarm Codes with external push buttons, or passes through GEA from external alarm systems
Integrates with External Alarm Systems
Mute Connection for External Sound Surveillance Systems
Multiple M-522 Units can be connected from multiple onboard locations
Illuminated, Dimmable Display and Dimmable Red L.E.D. Signal Lamps
Ruggedly constructed to withstand the harsh marine environment
Manoeuvring Signals Buttons (Starboard, Port, Astern, Danger)
Light Dimming Buttons (- / +)
Restricted Visibility Buttons (5 x )
Restricted Visibility Buttons (40, 60, 90, 120 second cycle times)
Signal Buttons (Horn/Light)
At Will Horn Button
At Will Morse Light Button
At Will Gong Button
Design for Flush Console mounting

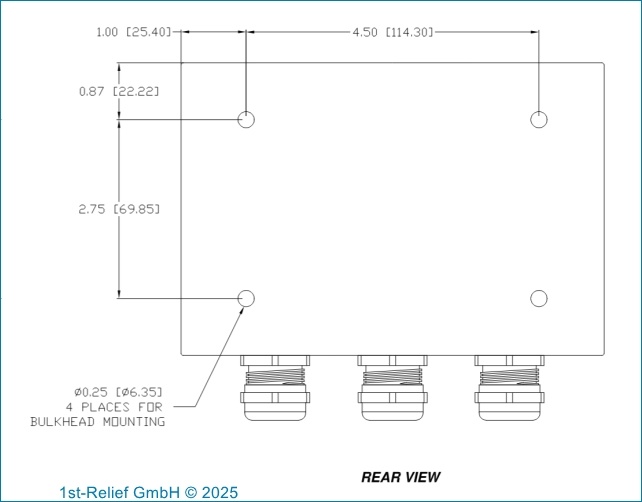

Design for Bulkhead mounting
