    ALDIS Portable daylight signalling lamp; morse lamp 24V, 60W, SOLAS (type approved)

    Brand: Sanshin
    €3.450,-* 1 pcs on stock; working days: 2 Europe, 5 Worldwide
    ALDIS Portable daylight signalling lamp; morse lamp 24V, 60W, SOLAS (typeapproved), required for all vessels navigating in international waters with equal or more than 150 gross tons... Show more
    3 variations connection receptacle: No

    Product description

    All ships with a gross tonnage of 150 or more, and navigating in international waters, are required to have daylight signalling lamp on board. This ALDIS Portable daylight signalling lamp (morse lamp) with 24 VDC and 60 W power is certified by the HK (Japanese government) as compliant to the relevant SOLAS provisions and the IMO (International Maritime Organisation) Resolution MSC.95(72) – Performance Standards for Daylight Signalling Lamps – (Adopted on 22 May 2000). All ships with a gross tonnage of 150 or more, and navigating in international waters, are required to have such a light on board. A copy of the certificate will be attached to the product shipment.

    • ALDIS Lamp with 5 m cable
    • Container Box (BOX-1D)
    • Battery (PXL12090F2-W)
    • Battery Charger (BCN-24S)
    • Connection cable with plugs 1,5 m
    • 3 pieces of spare halogen lamp

    Construction

    • Simplified signal operation Equal or better transmission rate of 12 words per minute can be achieved.
    • A special halogen lamp is used for getting a long life and stable luminous flux.
    • A very light weight of the lamp housing due to aluminium material and therefore easy operation.
    • Neutral filter and colour filter can be attached easily.

    Technical Information

    • Voltage [VDC]: 24
    • Lamp: Halogen lamp
    • Power [W]: 60
    • Luminous intensity [cd]: 60000
    • Beam angle [°]: 6
    • Signal reaching distance at daytime [NM]: 3
    • Protection Class: IP 44
    • Weight lamp [kg]: 2,55
    • Overall weight (Box, Battery, Lamp) [kg]: 13,6

    Accessories

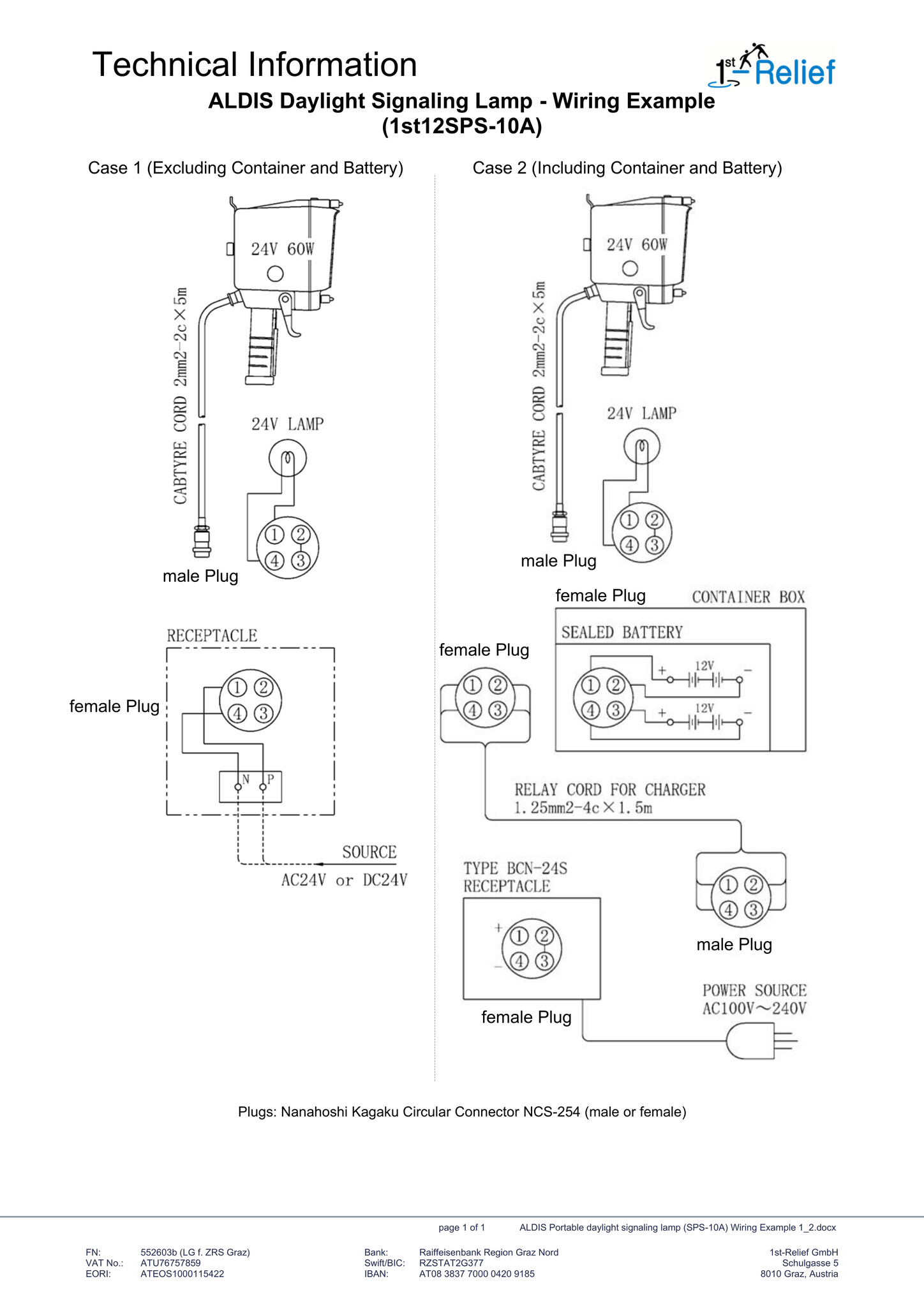

    • Flush mounted connection receptacle for ALDIS lamp (non water tight, IP20), Partnumber: 1st12RE-254FPA
    • Surface mounted connection receptacle for ALDIS lamp (water tight, IP65), Partnumber: 1st12RE-254PA

    Manufacturer information

    • Manufacturer: Sanshin Electric Corporation
    • Partnumber: SPS-10A

    Specifications

    Article number
    1st12SPS-10A
