    P569-03A, Compressor pump assy., 24 VDC for P449 Series Compressor

    €546,-* Goods to order; Europe 14 Days, RoW 17 Days
    P569-03A, Compressor pump assy., 24 VOLT for P449 Series Compressor... Show more

    Product description

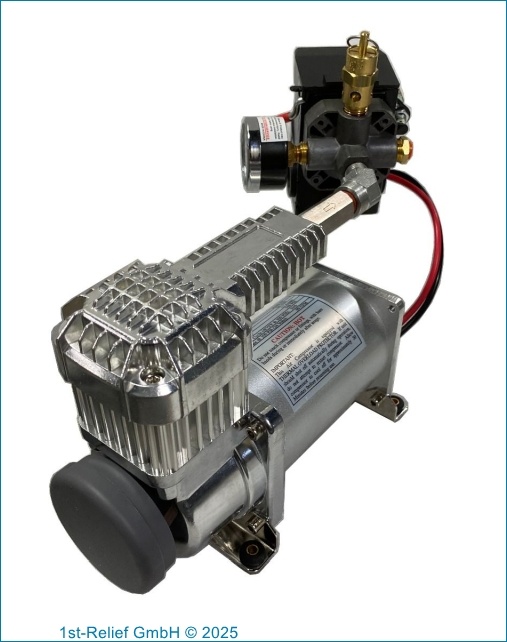

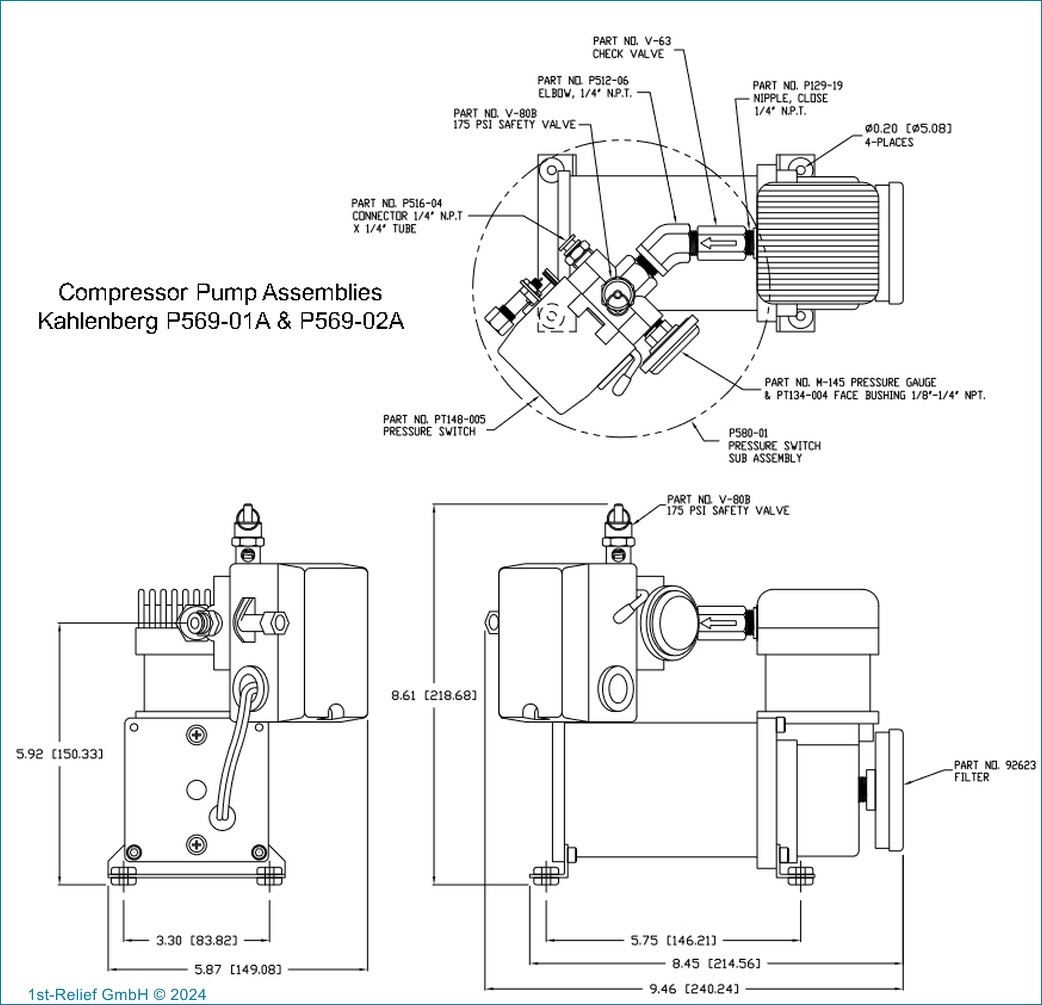

    Replacement compressor pump assembly, including pressure switch, safety valve, and air gauge.  Replaces pump assemblies originally included in P449-04, P449-10, P449-18, P449-24, P449-34 and P449-35 Air Compressor Kits.  This pump assembly supersedes P569-02A Compressor Pump assemblies.   Verify dimensions and mounting hole locations as compared to the existing pump assembly you intend to replace.   This pump assembly is slightly larger than previous versions from older kits.   It is adequate for Kahlenberg Air Horn Models S-0A, D-0A, and T-0A.

    Technical Information

    • Voltage: 24 VDC
    • Max Current: 12 A @24 Volts
    • FAD @ 7 bar: 24 l/min (0,88 cfm)
    • Max Pressure [bar]: 150 p.s.i., 10,31 (150p.s.i.)
    • Weight [kg]: 3,6 (8 lbs)
    • Noise Level dB(A)@ 1 meter: 69
    • Thermal Protection: Yes
    • Duty Cycle: 33%
    • Vibration Isolated: Yes
    • Wire Size: 12 AWG min.

    Manufacturer information

    • Manufacturer: Kahlenberg
    • Partnumber: P569-03A

    Specifications

    Article number
    1st17P569-03A
