ALDIS Nanahoshi Kagaku Circular Connector, 4 Contacts, Panel Mount, Socket/Receptacle, Female, NCS Series 30NCS

Name: Sanshin ALDIS Nanahoshi Kagaku Circular Connector, 4 Contacts, Panel Mount, Socket/Receptacle, Female, NCS Series 30NCS
Brand: Sanshin
Price: 45.00 EUR
Availability: InStock

Brand: Sanshin

Show all Light

Compare

ALDIS Nanahoshi Kagaku Circular Connector, 4 Contacts, Panel Mount, Socket/Receptacle, Female, NCS Series 30NCS

€45,-* Stock items; Europe 2 Days, RoW 5 Days

Unit price: €45,00 / Piece

* Incl. tax Excl. Shipping costs

ALDIS Nanahoshi Kagaku Circular Connector, 4 Contacts, Panel Mount, Socket/Receptacle, Female, NCS Series 30NCS... Show more

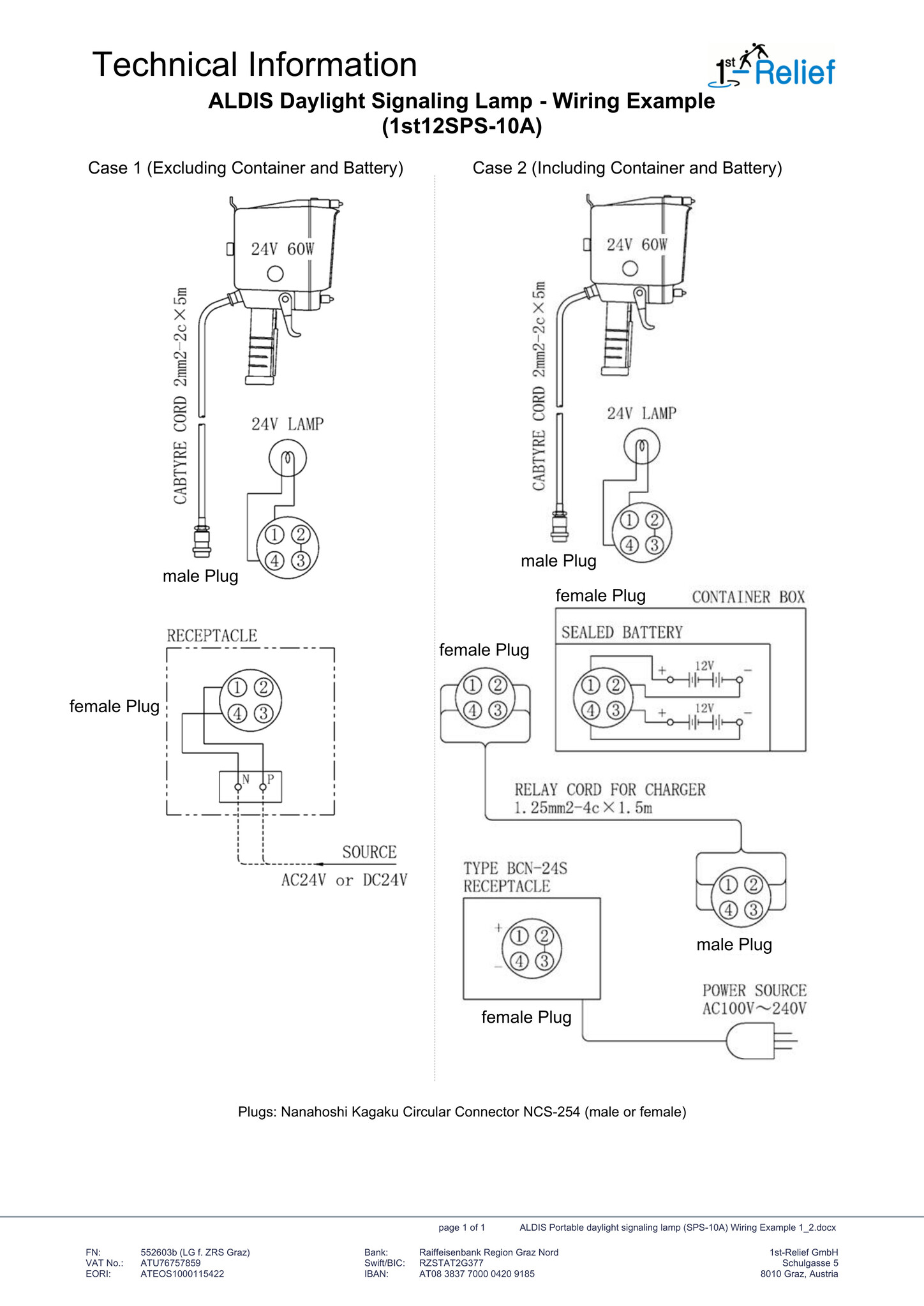

Product description

The basic form of circular metal connector. A representative series with a long track record of use in a variety of indoor manufacturing facilities. It also has high resistance to starting current and load current, making it useful in a variety of manufacturing facilities.

Wiring method: Soldering
Not waterproof
ROHS

Construction

Brand: Nanahoshi Kagaku
Number of Contacts: 4
Mounting Type: Panel Mount
Plug/Socket: Socket
Contact Gender: Female
Termination Method: Solder
Current Rating [A]: 20
Voltage Rating [V]: 250
Body Orientation: Straight
Series: NCS
Shell Size: 25
Contact Plating: Gold over Nickel
Maximum Operating Temperature [°C]: +120
Minimum Operating Temperature [°C]: -40
Contact Material: Copper
RoHS: RoHS directive compliant
Waterproof: None
Locking method: Screw locking method
Mechanism and material characteristics:
Simple structure, easy to handle and durable
10 shell sizes and many connector shapes available for a wide range of applications
Applicable standards:
- PSE Mark Certificate
- CSA NRTL/C Certificate (CSA: C22.2 No.182.3)
Characteristics:
- Insulation resistance: When measured between the closest conductors at the specified voltage, it is 2,000 MΩ or more.
- Dielectric strength: When the specified voltage is applied between the closest conductors for 1 minute, there are no abnormalities such as short circuits.
- Contact resistance: When a pair of contacts is joined to the regular length, the conductor resistance is 3 mΩ or less.

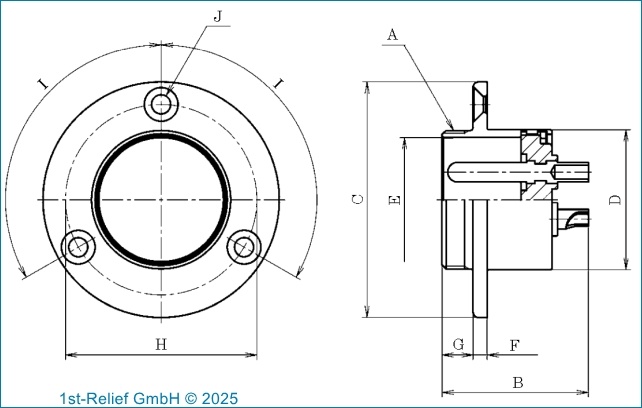

Drawing Dimensions
- A: M25 × 1,25
- B: 26
- C: 42
- D: 25
- E: 22
- F: 2,5
- G: 5,5
- H: 34
- I: 120°
- J: 3-M3 (Countersunk screw hole)
