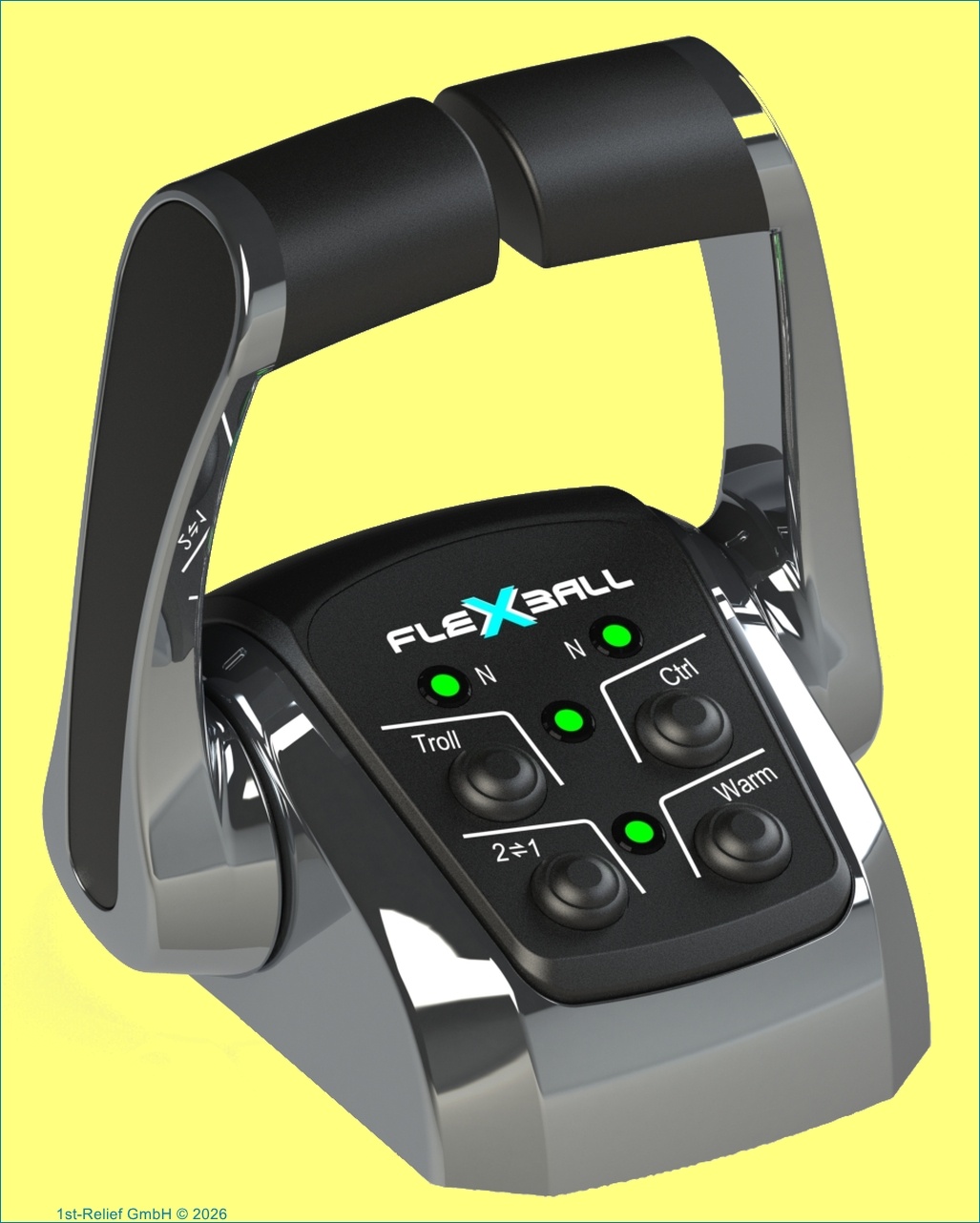

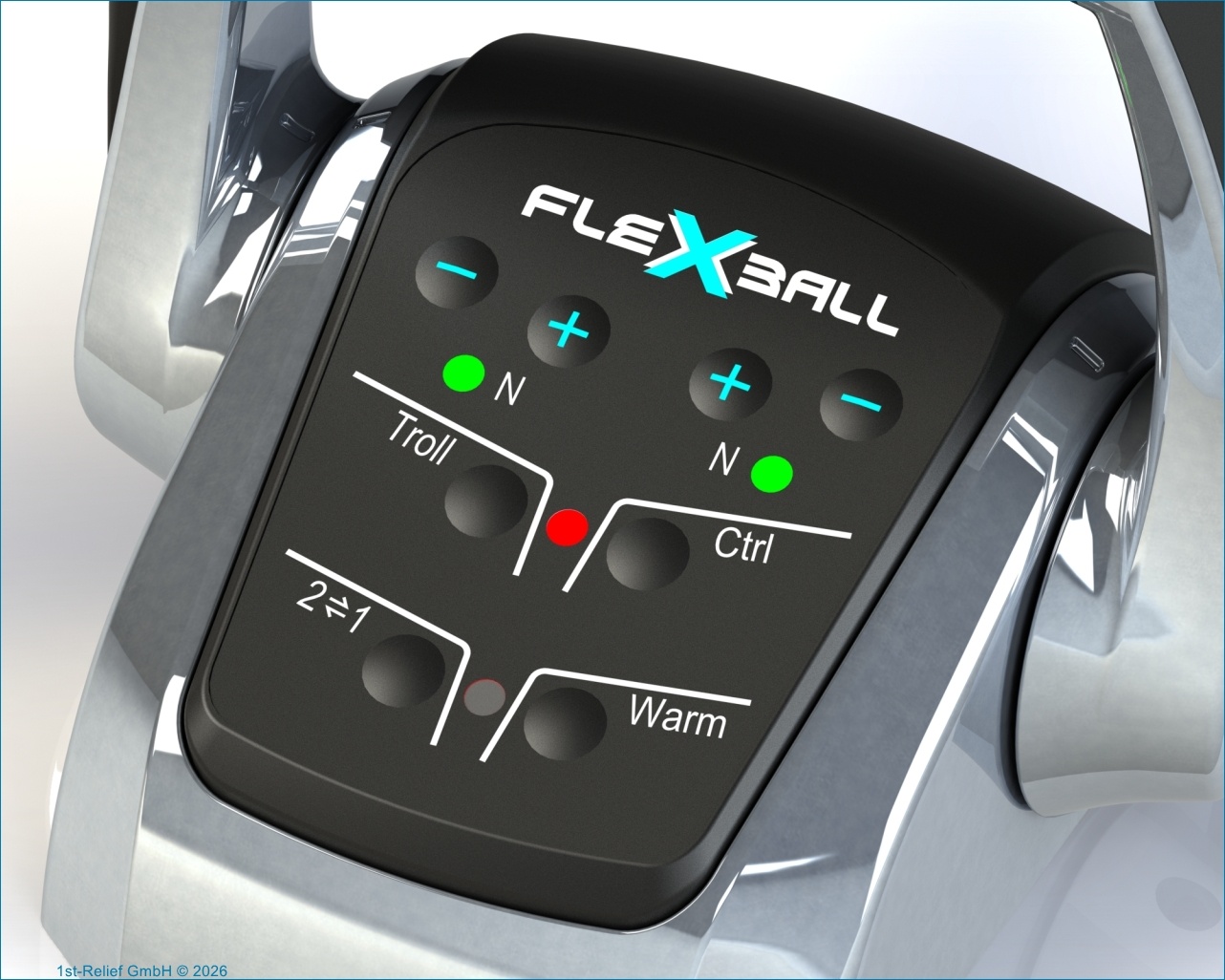

    Command lever for 2 engines

    Product description

    Electronic control systems Series 4500 combine mechatronic solutions and digital communication technologies which permit to build modular systems, flexible, reliable and easy to install.

    Just a few devices create a complete electronic control system. The electronic system fundamentally consists of 4 elements which vary in amount and type, depending on installation requirements:

    • control stations
    • actuators
    • data transmission cables to connect together actuators and control stations
    • cables between actuator and motor and between actuator and gearbox.

    The link between the various devices is via a simple 4-pin cable that carries all the information thru digital CANBus communication. In case of motors with mechanical interface, push-pull cables transfer the motion from the actuators to the throttle on the motor and on the gearbox. In the case of motors and gearboxes with electronic interface, a simple electrical wire performs their connection to the actuator. On all Flexball electronic control systems can be mounted either lever Series 3500 or lever Series 4500. The systems are configured to interface to different types of motors and gearboxes and their possible combinations.

    Motors Compatibility

    • Voltage: Cummins, Detroit Diesel, Scania, FNM, Lombardini, Deutz Vetus
    • 4-20 mA current: MAN, MTU, Isotta Fraschini
    • PWM: Caterpillar, Scania.

    Key Features

    • With up to 3 control stations in the basic version, the system can be extended up to 7 control stations
    • Fast Start-up Mode Function
    • Synchro function that can be activated either in neutral or when sailing
    • Trolling control
    • Trim/Flap and Synchro Trim/Flap function
    • Starting inhibition if the gear isn’t in neutral
    • Advanced functions for fast and safe commissioning
    • Interface to frequency converters in hybrid propulsion systems
    • Programmable delays at clutch in or clutch out
    • Emergency safety devices directly on the actuator, in the case of systems with mechanical interface.

    Main Features

    • Electronic control system in drive by wire technology
    • Maximum distance between deck and engine room can be more than 60 meters
    • Fast and easy installation
    • EMC and CE Certified
    • Operation with instant plug and play
    • Limited number of components
    • Digital Data Transmission
    • Setting of operating parameters either via keypad or via PC.

    Technical Features

    • Supply voltage from 9.0 to 32 Vdc (multi-voltage supply)
    • Max input current: 5 A
    • Current at idle: 0.5 A
    • Operating temperature: –10 to + 85 °C
    • Mechanical generated force at nominal conditions: 250 N (25 kg) with absorption of 1.5 A
    • Maximum generated force: 450 N (45 kg) with absorption of 5 A and for a time less than 1 second
    • Gearbox stroke – forward: it can be set between 5 and 40 mm
    • Gearbox stroke – reverse: it can be set between 5 and 40 mm
    • Maximum throttle stroke: 80 mm.

    Planning and Design proposal in 1 business - day for free

    Please use the link in the picture below to access the Wireless Remote Yacht Control - Questionnaire. We will come back to you with a design proposal within 1 business day for free.

    Alternatively sens us a mail to [email protected].

    Wireless Remote Yacht Control - Questionnaire

    Explanatory Video

    1st-Relief shows in this video the conversion of a yacht engine control from a mechanical actuator to an electrical system (powered by Flexball) based on a catamaran double engine system. Three variants are shown in this video:

    2 engines, 1 control head
    2 engines, 2 control heads
    2 engines, 2 control heads and full remote control
